At Serviacero Comercial, we manufacture Losacero 30 galvanized steel decking sheets in gauges 18 through 24. We offer custom fabrication in lengths from 2.00 to 12.20 meters, tailored to each project’s specifications. Losacero 30 is commonly used in floor and roof decking systems, providing fast installation, excellent structural performance, and reliable durability for a wide range of construction applications.
At Serviacero Comercial, we manufacture Losacero 30 steel decking sheets in galvanized finish, available in gauges 18 to 24. Custom lengths can be fabricated according to project specifications, ranging from 2.00 to 12.20 meters. This material is widely used for floor and roof decking, offering ease of installation and high structural performance.

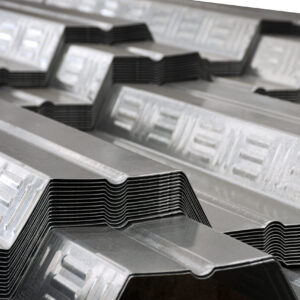

Our Losacero 30 sheets are produced in galvanized finish, in gauges 18, 20, 22, and 24, with an effective width of 91.5 cm, manufactured under the highest quality standards. Made from Grade 37 structural steel, Losacero 30 provides excellent structural resistance for a wide range of construction and structural engineering applications.
Losacero 30 sheets are used in a wide variety of projects due to their mechanical and physical properties, simplifying construction and providing a reliable solution for diverse structural applications.
| Losacero 30 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Theoretical weights table | ||||||||||||
| Thickness | Steel Base | Weight | Superior Compression m+ | Lower compression M- | adm. | Effective width | ||||||
| Ixe + | Sxe+ | M axo+ | Ixe - | Sxe- | Maxo - | Vay (kg/M width) | ||||||
| mm | Inch | kg/ml | kg/m2 | cm4/m | cm3/m | Kg-m | cm4/m | cm3/m | kg-m | |||
| 24 | 0.607 | 0.0239 | 5.8 | 6.04 | 51.07 | 13.01 | 203 | 51.07 | 13.75 | 214 | 1397 | 0.93 |
| 22 | 0.759 | 0.0299 | 7.6 | 8.31 | 67.48 | 18.01 | 281 | 67.03 | 18.82 | 293 | 2206 | 0.93 |
| 20 | 0.912 | 0.0359 | 9.06 | 9.9 | 88.46 | 23.14 | 361 | 83.46 | 24.08 | 375 | 3181 | 0.93 |
| 18 | 1.214 | 0.0478 | 11.96 | 13.07 | 111.32 | 32.76 | 511 | 111.32 | 34.13 | 532 | 4213 | 0.93 |
| SPECIAL MEASURES ON ORDER | ||||||||||||
| CONCRETE, F´C0=2200 KG/CM2, P. VOL. 2400 KG/M3: N=10 | |||||
|---|---|---|---|---|---|
| Caliber | Concrete | Weigth | Clear maximum without propping up | ||
| Description | simple | double | triple | ||
| Inches | cm | kg/m2 | m | m | m |
| 24 0.0239 | 5 | 195 | 1.77 | 2.38 | 2.41 |
| 6 | 218 | 1.7 | 2.29 | 2.32 | |
| 8 | 264 | 1.59 | 2.15 | 2.17 | |
| 10 | 310 | 1.5 | 2.03 | 2.05 | |
| 12 | 356 | 1.42 | 1.93 | 1.95 | |
| 22 0.0299 | 5 | 205 | 2.08 | 2.68 | 2.77 |
| 6 | 229 | 2.00 | 2.58 | 2.66 | |
| 8 | 277 | 1.86 | 2.40 | 2.48 | |
| 10 | 325 | 1.80 | 2.26 | 2.33 | |
| 12 | 373 | 1.78 | 2.13 | 2.20 | |
| 20 0.0359 | 5 | 206 | 2.42 | 3.05 | 3.15 |
| 6 | 230 | 2.32 | 2.93 | 3.03 | |
| 8 | 278 | 2.16 | 2.74 | 2.83 | |
| 10 | 326 | 2.09 | 2.57 | 2.66 | |
| 12 | 374 | 2.06 | 2.44 | 2.52 | |
| 18 0.0478 | 5 | 209 | 2.97 | 3.62 | 3.74 |
| 6 | 233 | 2.85 | 3.48 | 3.60 | |
| 8 | 281 | 2.63 | 325 | 3.36 | |
| 10 | 329 | 2.56 | 3.06 | 3.16 | |
| 12 | 377 | 2.51 | 2.90 | 3.00 | |
| Steel: GR37 | |||||
