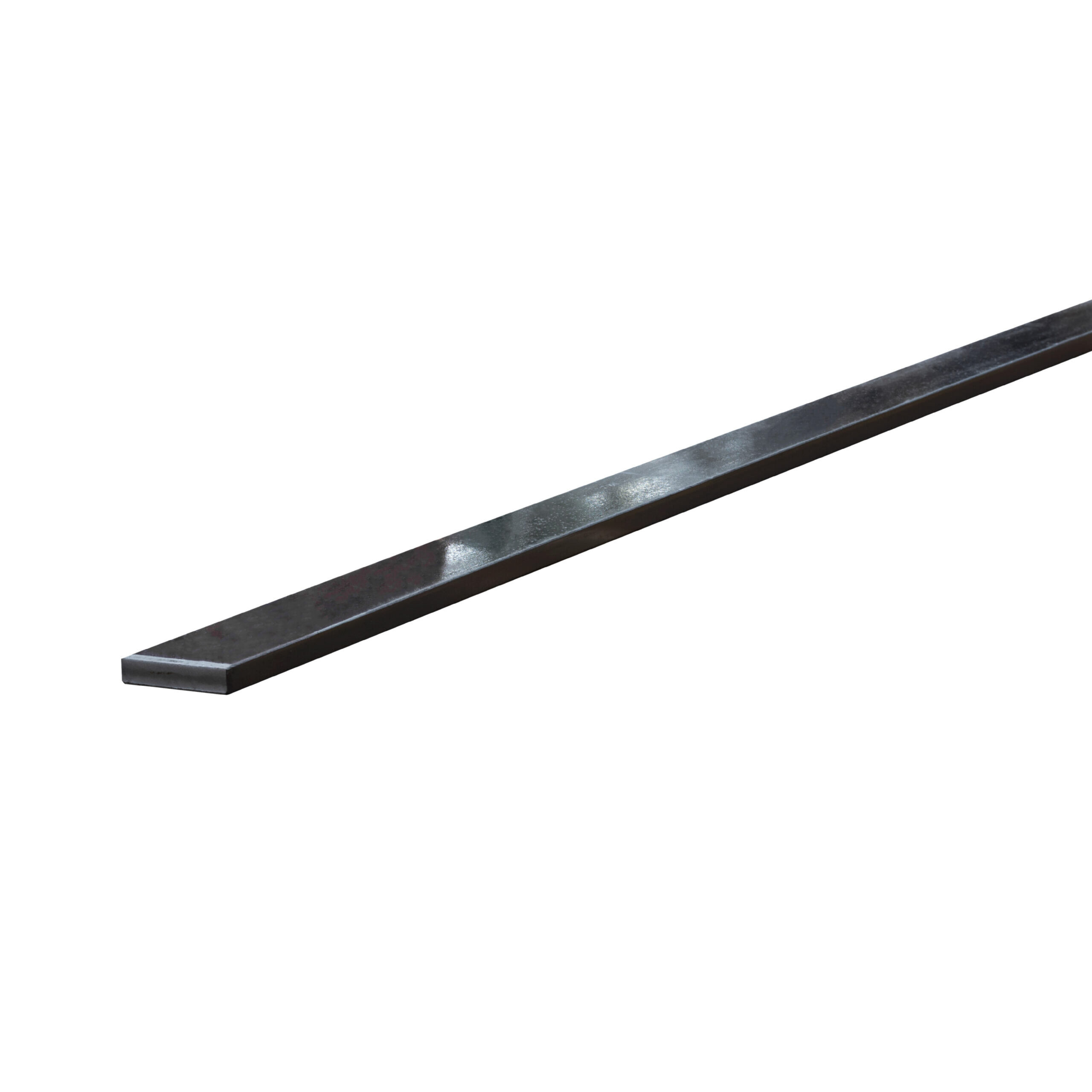

The Steel Flat Bar is a thin, flat steel bar, it belongs to the family of commercial steels, its most common uses are in structures, reinforcements, ironwork, among others. Thanks to its design, it allows for better load distribution, the properties that stand out in this material are durability and stability.
The steel flat bar is a thin, flat steel strip that belongs to the commercial steel family. Its most common applications include structural frameworks, reinforcements, and metalworking, among others. Its design allows for efficient load distribution, and the material’s notable properties include durability and stability.
Steel flat bars are a versatile material within the family of commercial profiles, widely used across sectors such as construction, metalworking, and the fabrication of metal structures. This profile consists of a thin, flat bar characterized by its durability, strength, and ease of handling. At Serviacero Comercial, we offer a wide range of thicknesses to meet the specific needs of each project. Additionally, we provide two standard lengths—6.10 meters and 12.20 meters—offering practical options for various applications.
We offer two main variants: the mill flat bar, distinguished by its traditional rough texture, ideal for projects requiring a standard finish; and the slitter flat bar, recognized for its smoother and more uniform surface, perfect for applications demanding a more aesthetic appearance or precise finish. These features make steel flat bars a reliable solution for structural reinforcements, tool manufacturing, and a wide range of industrial and commercial uses.
In summary, steel flat bars are versatile and can be applied wherever a strong, durable, and structurally supportive material is required.
These characteristics and benefits make steel flat bars a popular and widely used choice across multiple industries and applications.
| Steel slab | ||||
|---|---|---|---|---|
| Standard Specification ASTM A36, A709 y Q. Commercial | ||||
| Theoretical Weights Table | ||||
| Size | Kg / m | |||
| Inches | mm | |||
| *1/8 | x 1/2 | 3.2 | x 12.7 | 0.317 |
| x 3/4 | x 19.1 | 0.474 | ||
| x 1 | x 25.4 | 0.633 | ||
| x 1 1/4 | x 31.7 | 0.791 | ||
| x 1 1/2 | x 38.1 | 0.95 | ||
| x 2 | x 50.8 | 1.26 | ||
| *3/16 | x 1/2 | 4.8 | x 12.7 | 0.474 |
| x 3/4 | x 19.1 | 0.712 | ||
| x 1 | x 25.4 | 0.95 | ||
| x 1 1/4 | x 31.7 | 1.187 | ||
| x 1 1/2 | x 38.1 | 1.424 | ||
| x 2 | x 50.8 | 1.899 | ||
| x 2 1/2 | x 63.5 | 2.373 | ||
| 1/4 | x 1/2 | 6.3 | x 12.7 | 0.633 |
| x 3/4 | x 19.1 | 0.95 | ||
| x 1 | x 25.4 | 1.266 | ||
| x 1 1/4 | x 31.7 | 1.583 | ||
| x 1 1/2 | x 38.1 | 1.899 | ||
| x 2 | x 50.8 | 2.532 | ||
| x 2 1/2 | x 63.5 | 3.165 | ||
| x 3 | x 76.2 | 3.796 | ||
| x 4 | x 101.6 | 5.064 | ||
| x 5 | x 127.0 | 6.33 | ||
| x 6 | x 152.4 | 7.592 | ||
| x 8 | x 203.2 | 10.12 | ||
| 5/16 | x 1 1/4 | 7.9 | x 31.7 | 1.973 |
| x 1 1/2 | x 38.1 | 2.37 | ||
| x 2 | x 50.8 | 3.17 | ||
| x 2 1/2 | x 63.5 | 3.96 | ||
| x 3 | x 76.2 | 4.75 | ||
| x 4 | x 101.6 | 6.32 | ||
| x 6 | x 152.4 | 9.5 | ||
| 3/8 | x 1 | 9.5 | x 25.4 | 1.899 |
| x 1 1/4 | x 31.7 | 2.376 | ||
| x 1 1/2 | x 38.1 | 2.849 | ||
| x 2 | x 50.8 | 3.798 | ||
| x 2 1/2 | x 63.5 | 4.748 | ||
| x 3 | x 76.2 | 5.698 | ||
| x 4 | x 101.6 | 7.597 | ||
| x 6 | x 152.4 | 11.396 | ||
| x 8 | x 203.2 | 15.194 | ||
| 1/2 | x 1 1/2 | 12.7 | x 38.1 | 3.798 |
| x 2 | x 50.8 | 5.064 | ||
| x 2 1/2 | x 63.5 | 6.331 | ||
| x 3 | x 76.2 | 7.597 | ||
| x 4 | x 101.6 | 10.129 | ||
| x 5 | x 127.0 | 12.660 | ||
| x 6 | x 152.4 | 15.194 | ||
| x 8 | x 203.2 | 20.258 | ||
| x 10 | x 254.0 | 25.32 | ||
| 5/8 | x 1 1/2 | 15.9 | x 38.1 | 4.748 |
| x 2 | x 50.8 | 6.331 | ||
| x 2 1/2 | x 63.5 | 7.913 | ||
| x 3 | x 76.2 | 9.496 | ||
| x 4 | x 101.6 | 12.661 | ||
| x 5 | x 127.0 | 15.830 | ||
| x 6 | x 152.4 | 18.992 | ||
| x 8 | x 203.2 | 25.322 | ||
| 3/4 | x2 | 19.1 | x 50.8 | 7.597 |
| x 2 1/2 | x 63.5 | 9.496 | ||
| x 3 | x 76.2 | 11.395 | ||
| x 4 | x 101.6 | 15.194 | ||
| x 5 | x 127.0 | 18.990 | ||
| x 6 | x 152.4 | 22.790 | ||
| x 8 | x 203.2 | 30.388 | ||
| 1' | x 2 | 25.4 | x 50.8 | 10.129 |
| x 3 | x 76.2 | 15.194 | ||
| x 4 | x 101.6 | 20.258 | ||
| x 6 | x 152.4 | 30.388 | ||
| x 8 | x 203.2 | 40.516 | ||
| * Bearing bar Slitter | ||||
